Centurion ADA Accessible Pan

In stock
Product Code:

4* WELS. Disabled access stainless steel toilet pan with safety radius front edge. Supplied with Black Vandal Resistant Toilet Seat as standard unless another colour specified.

  • Description

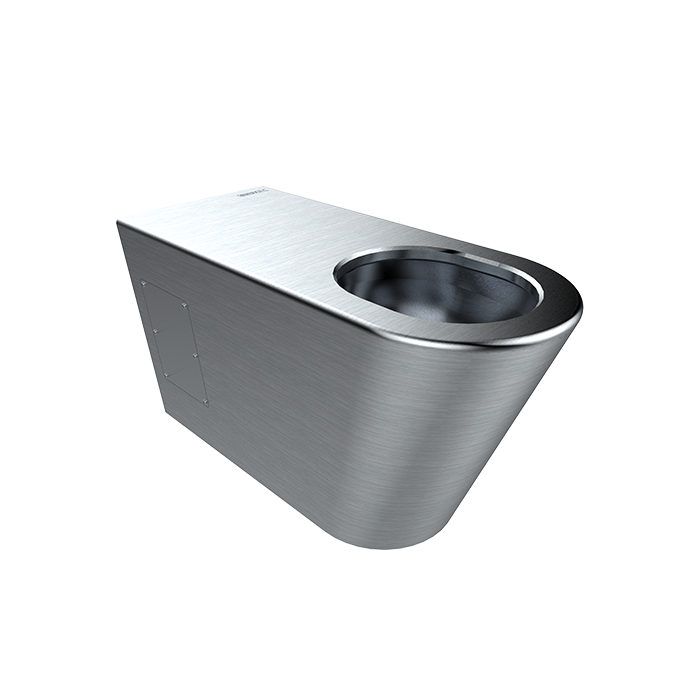

    The BRITEX Centurion Disabled Toilet Pan is fully shrouded and manufactured from heavy gauge grade 304 satin stainless steel making it easy to clean and providing optimal strength. It is designed to conform to Australian Standard for disability access - AS1428. Incorporating radius edges for added safety, a pressed internal bowl and unique trap design, the Centurion Disabled pan is extremely water efficient (4.5/3 litre) and much less susceptible to costly blockages in public amenities. Access panels come standard on both sides of the pan for easy installation and a toilet seat can be fitted if required. WaterMark and WELS certified as required by plumbing regulations and government legislation. A vandal resistant Stainless Steel Backrest as required by AS1428:2009 is optional.


  • Features & Benefits
    • WELS and WaterMark certified
    • Disability code AS1428 compliant
    • Available with S or P trap
    • Concealed fixings
    • Unique blockage resistant trap
    • Safety radius front edges
    • Left and right access panels
    • Free of ligature points
    • Optional fitted anti-vandal Toilet Seat
    • Optional Toilet Backrest - as required by AS1428
    • Option for permanently sealed access panels (maximum security projects)
    • Option for 'Ambulant' model (raised height only)
    • Suits detention facilities and public amenities
  • Technical Downloads
    * Please or Register to view or download below files.
    Britex US-PCD Technical Drawing*
  • Specifications

    BRITEX S.S. Centurion Disabled Toilet Pan - 4* WELS rating and WaterMark certified.  Trap, 14mm safety radius front edge, fully shrouded to rear wall and 2 x access panels.  AS 1428 compliant - Product Code PCD


    The above text is provided for replication into project specification schedules.  may denote: 1) a variable where one option only is to be selected, 2) a nominal dimension (e.g. XXXXmm) that needs to be specified, or 3) an optional feature that can be removed if not required. Please refer to the product data sheet for additional details.

  • Options
    • Britex Toilet Backrest - as required by AS1428
    • Toilet Seat (see Toilet Seats section)
    • S or P trap configurations
    • Top entry to suit wall mount cistern
    • Britex Cistern (see Flushing section)
    • Permanently sealed access panels for maximum security projects
    • Custom material thickness - consult BRITEX
