Wall Mounted Hand Basin

In stock
Product Code:
US-HBS
Price on Request

Economy model. Versatile stainless steel wall basin with chamfered front corners, soap recesses, 32mm tap hole and optional tapware.

  • Description

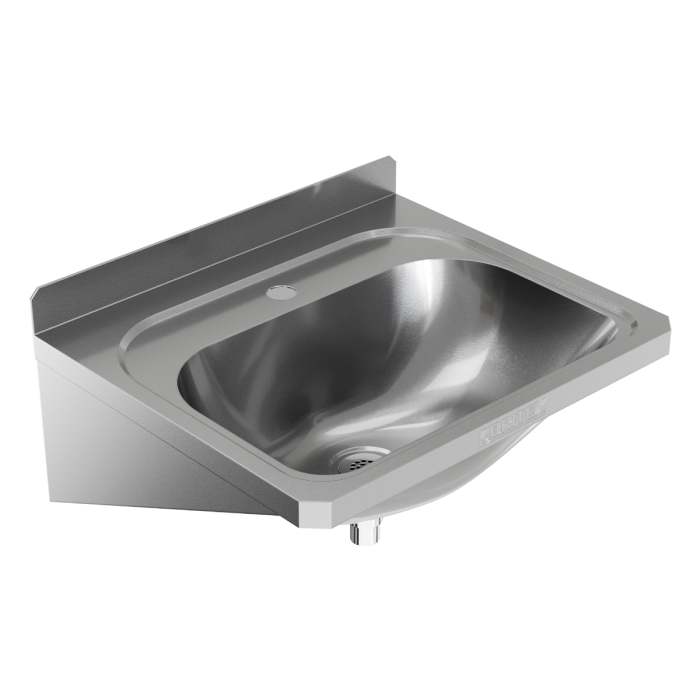

    The BRITEX Stainless Steel Wall Mounted Hand Basin is a robust economical hand basin, suitable for use in light commercial projects, public amenities and sporting clubs. The front corners of the basin are chamfered to a 45 degree angle for added safety. Mounted on heavy duty wall bracket and supplied with a 40mm waste outlet, the pressed basin area includes two soap recesses and a tap landing with 32mm tap hole. Basins can be supplied complete with anti-vandal timed flow tapware, sensor tap or flick mixers.

  • Features & Benefits
    • Complies with food preparation standards
    • 11 litre bowl capacity
    • Economy model
    • 45° chamfered front corners
    • Soap recesses
    • 40mm waste & wall bracket supplied
    • 50mm blade rear upstand with additional fixing holes
    • Grade 304 satin stainless steel
    • Choice of tapware style
  • Technical Downloads
    * Please or Register to view or download below files.
    alt
    Britex US-HBS Technical Drawing*
  • Specifications

    BRITEX S.S. Wall Mounted Hand Basin - 500L x 425W x 140D. 11 Litre bowl capacity. Supplied complete with wall bracket, chamfered front corners, soap recesses, 40mm waste outlet and 32mm tap hole. (Tapware details here if supplied with tapware) - Product Code US-HBS-TW-XXXX



    The above text is provided for replication into project specification schedules.  may denote: 1) a variable where one option only is to be selected, 2) a nominal dimension (e.g. XXXXmm) that needs to be specified, or 3) an optional feature that can be removed if not required. Please refer to the product data sheet for additional details.

  • Options
    • Tapware: see data sheet or 'Tapware' section
    • Splashback panel - up to 500mm High
