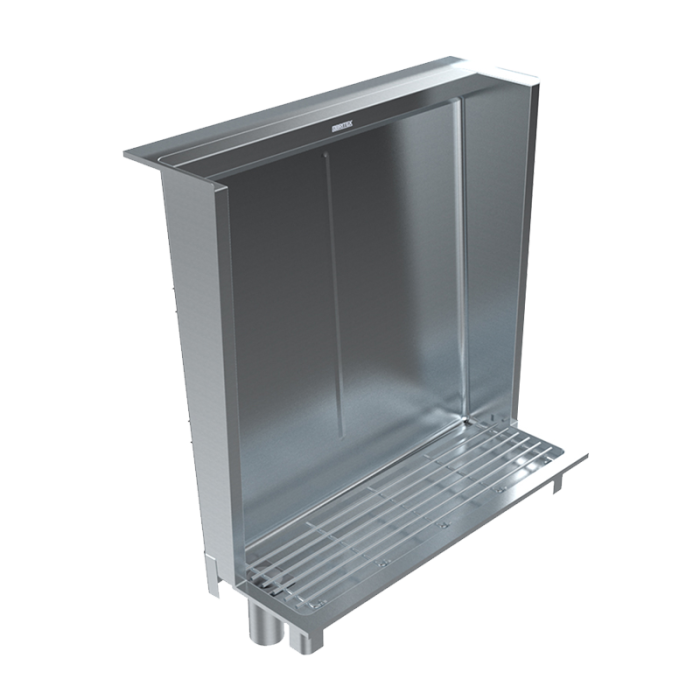

Sanistep Urinal

In stock
Product Code:

The most frequently specified stainless steel hinged grate urinal, IAPMO Certified and manufactured in custom lengths to suit. Floor Mounted and Recessed models available.

  • Description

    The BRITEX Sanistep Urinal is the most frequently specified stainless steel urinal in Australia and can be found in many of Australia's iconic sports and entertainment stadiums. Manufactured from heavy duty grade 304 stainless steel, Sanistep urinals are hand fabricated and fully welded with sturdy reinforcement to the rear, providing a sound structural finish. Sanistep urinals incorporate a hinged floor grate to allow for ease of cleaning and feature our unique weir style sparge, which enables the water to flush evenly across the urinal with minimum water and maximum efficiency. The Sanistep urinal is fully compatible with the Britex Smart Saniflush Sensor System, providing a IAPMO Certified slab urinal fixture.


  • Features & Benefits
    • IAPMO Certified
    • Recessed or floor mounted models
    • Vandal resistant design
    • Manufactured to custom lengths
    • Compatible with BRITEX Smart Saniflush Sensor System
    • Hinged grate for ease of cleaning
    • Water saver sparge system
    • Removable sparge cover
    • Available in 'L' or 'U' shaped configurations
    • Grade 304 SS (1.2mm -16/18 gauge)
  • Technical Downloads
    * Please or Register to view or download below files.
    Britex US-USAN Revit 2012*
    Britex US-USAN Revit 2016*
    Britex US-USAN Technical Drawing*
  • Specifications

    BRITEX S.S.  Sanistep Urinal - mm Long. IAPMO Certified. Complete with hinged floor grate - Product Code USAN.


    <p >The above text is provided for replication into project specification schedules.  may denote: 1) a variable where one option only is to be selected, 2) a nominal dimension (e.g. XXXXmm) that needs to be specified, or 3) an optional feature that can be removed if not required. Please refer to the product data sheet for additional details.

  • Options
    • ā€˜Lā€™ and ā€˜Uā€™ shaped configuration
    • Smart SaniFlush Sensor System
    • Outlet size: 100mm, 75mm, 50mm or custom
    • Outlet position (left/right end preferred)
    • Inlet size - 38mm or 25mm
    • Free standing ends (if not between walls)
    • Type 316 S.S. (Export models)
    • Joining strip for joining modular lengths
