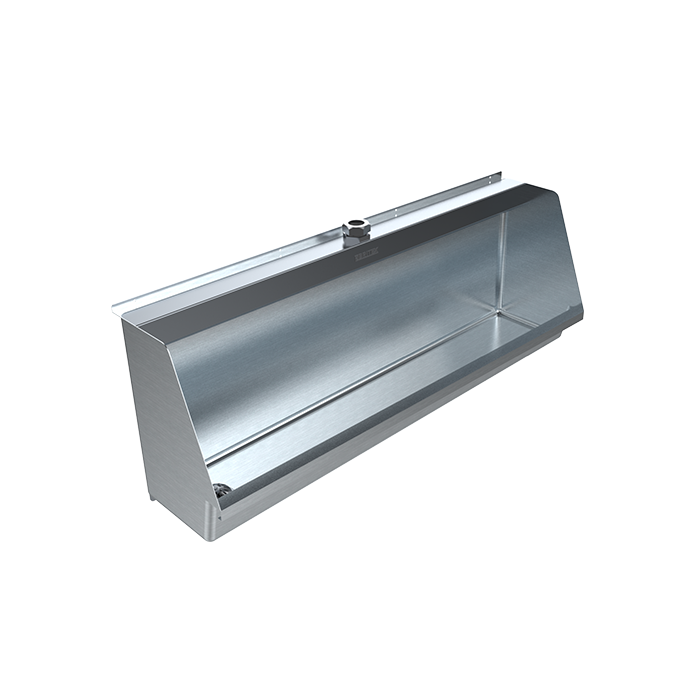

Wall Hung Urinal Trough

In stock
Product Code:
US-UTRO

Stainless steel urinal trough, ideal for temporary buildings and ablution blocks. Made to standard and custom lengths.

  • Description

    The BRITEX Wall Hung Urinal Trough is manufactured from 1.2mm heavy duty stainless steel and is ideal for site sheds, portable buildings and ablution blocks. Easy to install and compatible with assorted Britex flushing systems, the Britex Wall Hung Urinal Trough comes in both standard and custom sizes. IAPMO certified.

    Urinals

  • Features & Benefits
    • IAPMO certified
    • Left or Right hand 50mm outlet
    • Standard and custom lengths
    • Grade 304 SS (1.2mm -16/18 gauge)
    • Supplied with top or rear water inlet
    • Quick and easy to install
    • Suited to portable buildings and public amenities
  • Technical Downloads
    * Please or Register to view or download below files.
    alt
    Britex US-UTRO Revit 2012*
    alt
    Britex US-UTRO Technical Drawing*
  • Specifications

    BRITEX S.S. Wall Hung Urinal Trough - mm Long. IAPMO certified. Radiused internal corners,  water inlet and 50mm  hand waste outlet - Product Code US-UTRO---



    The above text is provided for replication into project specification schedules.  may denote: 1) a variable where one option only is to be selected, 2) a nominal dimension (e.g. XXXXmm) that needs to be specified, or 3) an optional feature that can be removed if not required. Please refer to the product data sheet for additional details.

  • Options
    • Top or rear water entry
    • Outlet position - left or right
    • Custom lengths
    • Manual or Automatic flushing system
    • Removable shroud to conceal waste connection
    • Inlet size: 38mm, 25mm or custom
